HSYT Heat Shrinkable Terminals
HSYT Heat Shrinkable Terminals
Applications

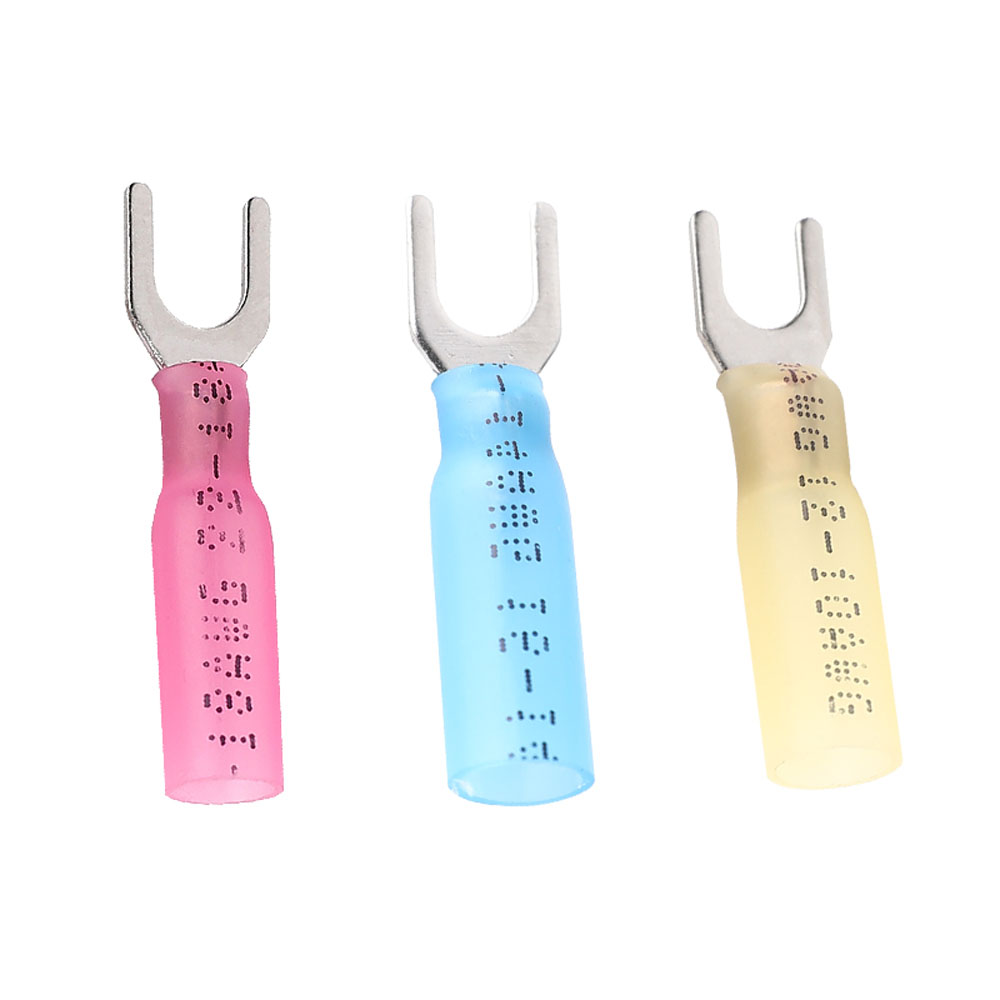

HSYT are heat shrinkable sleeves made of polyolefin and hot melt adhesive. They are used for protection connection, waterproof and anti-corrosion. It can strengthen the fixing and anti-vibration in a rough environment. It has a good function of insulating and protecting the electronic connector. Durable, easy to install, and low installation cost compared to conventional connectors.
Characteristics Shrinkage ratio 3：1 Excellent stretch and mechanical damage resistance Ideally translucent provides tensile strength High elasticity keeps steady performance | Operating temperature range Operating temperature : -55℃～125℃ Minimum shrink temperature : 80?C fully recovery temperature : 130?C |
Technical Indicators
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 18MPa | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 11.5MPa | 150℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 150℃/7 days | |
Copper corrosion | No corrosion of bare copper | 150℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 150℃/7 days | |
Cold bend | No crack | -40℃/4 hrs | |
Maximum secant modulus(2%) | 250 MPa | - | |
Volume resistivity | Min.1014Ω-cm | - | |
Heat shock | No crack | 200℃/4 hrs | |
產(chǎn)品規(guī)格

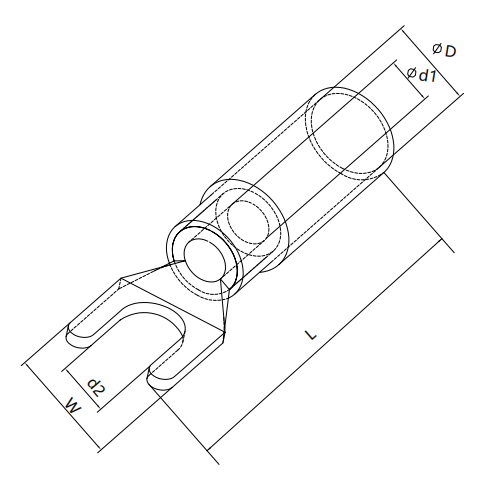

Part. No | Wire Range | Stud Size(mm) | Width（mm） | Length（mm） | Insulator | Color | ||||
A.W.G | mm2 | Size | d1 | d2 | D | W | L | |||
SVL 1.25-5 | 22-16 | 0.5-1.5 | #10 | 1.7 | 5.2 | 4.7 | 8.0 | 31 | PE | Red |
SVL 2-5 | 16-14 | 1.5-2.5 | #10 | 2.3 | 5.2 | 5.7 | 8.0 | 31 | PE | Blue |
SV 5.5-5 | 12-10 | 4-6 | #10 | 3.4 | 5.2 | 6.7 | 9.0 | 36 | PE | Yellow |
Huizhou Yuxuan New Material Co., Ltd. Tel：86-0752-5310486 Add：Building 8, Jinbao City Jiayuan, Hechang 5th Road, Zhongkai High-tech Zone, Huicheng District, Huizhou City
|
